Google Data Studio Connector Setup Guide

Use Datawarehouse.io to sync data to Google Data Studio for easy reporting and unified analytics.

Index

  1. Introduction
  2. Account Creation
  3. Activation
  4. User Panel
    1. Sync Configuration
    2. Manage Database Users
    3. Manage Data Sources
  5. Google Data Studio Setup
  6. How to Uninstall the app
  7. Beta API's
  8. Opt-In Tables
  9. Data Sync
  10. Data Security



Introduction

The Datawarehouse.io Google Data Studio (formerly Looker Studio) Integration empowers business analysts and decision-makers to transform data from different sources into interactive, actionable insights—eliminating the challenges of manual Excel exports or fragmented data processes.

This app automates the synchronization of your data into an Azure SQL database, granting you direct, flexible access within Google Data Studio’s robust reporting and visualization tools.

With this integration, users can easily join, blend, and display data alongside other sources, enabling more dynamic dashboards, streamlined analysis, and better-informed decisions.

Account Creation

  1. Create an account at app.datawarehouse.io
  2. Select the Google Data Studio Connector on the dashboard or in the left-hand menu.
  3. Click the Start Free Trial button.
  4. You will be re-directed to a page labeled Select Initial Data Source. Here, you will select which data source to link to the Connector app.
  5. Select the refresh rate that you want your data to sync into Google Data Studio.
  6. You are then re-directed to the checkout screen. Please fill out all required information in order to activate your service.
  7. Success! You are all signed up and can now visit the Google Data Studio Connector section of the app to view your connector details.
  8. Continue to the Google Data Studio Setup for how to plug the app into Azure Data Studio.



Activation

Once you have successfully signed up, we will activate your app. Upon activation an email with your Connector details will be sent to you. You can also retrieve them from the User Panel.



User Panel

You can visit the User Panel to perform the following self service administrative actions for your Connector database.

Below are the primary functions of the selections found in your user panel:

  • Manage Data Sources
    • You can add and manage additional data sources such as LinkedIn Ads and Google Ads to be included in the Connector dataset (see Manage Data Sources subsection below form more details).
  • Manage Database Users
    • You can add and manage additional database users by clicking on and using this feature here (see Manage Database Users subsection below for more details).
  • Configure Sync
    • You can set up the sync to only sync over the data you need using this feature by removing specific tables and fields/columns from the sync (see Sync Configuration subsection below for more details).

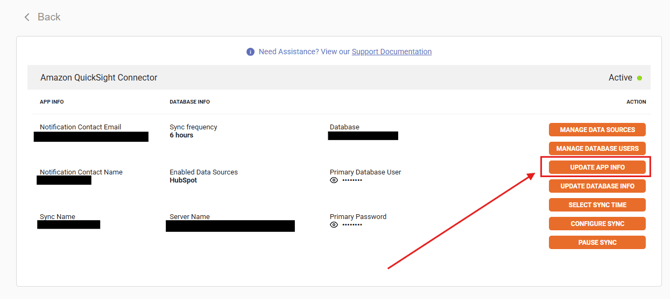

  • Update App Info
    • You can assign/reassign the primary user of the database by clicking on this button and making the necessary adjustments by inputting the information in the pop-up window as shown in the example below.

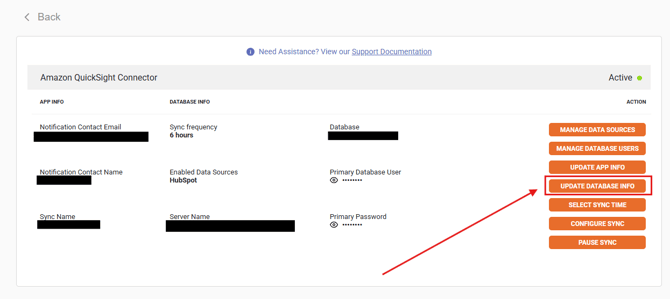

  • Update Database Info
    • You can change the name of the database and the primary username of the database here.



  • Pause Sync

    • You can pause and un-pause the sync at any time using this feature.
      • Please note: This does not pause the billing for your subscription. It only pauses the sync between your data sources and your Connector database.

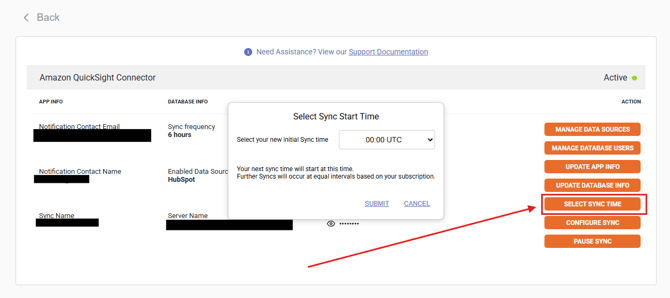

  • Select Sync Time
    • Here, you can adjust your sync times as needed by opening the interface as shown in the example below.
    • Please note: This feature is only available to users on the 6-hour refresh rate plan or higher. To learn how to upgrade your subscription, please review the following documentation linked here.

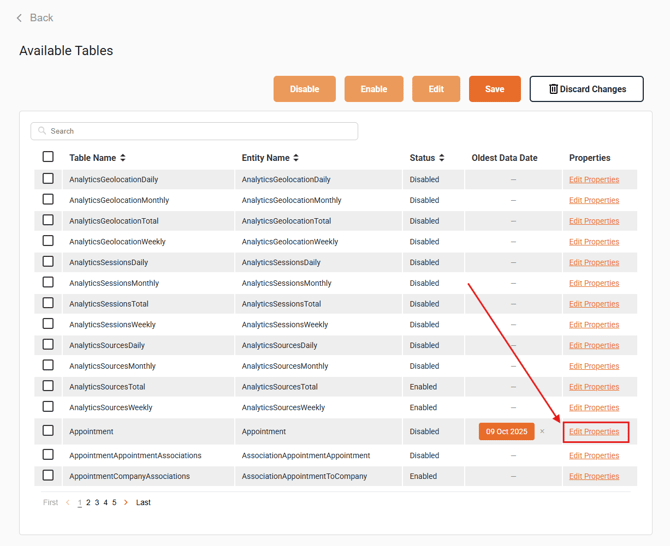

Sync Configuration

The Sync Configuration feature allows users to select and deselect which pieces of data they wish to have synced from their data sources.

Users can use this feature to suppress and remove any tables or specific fields/columns/properties that are currently synced into their database that they do not need or are not currently using.

This will not remove those pieces of data from directly within your data source. It only removes the selected pieces of data from the dataset that was synced over by Datawarehouse.io and prevents that data from syncing.


To learn how to locate and use this feature, please review the following help documentation linked below.



Manage Database Users

Additional users can be added and managed to your designated database to allow more access to individuals who require access to the database.

To learn how to add and manage additional users for your database, please review the linked documentation below:



Manage Data Sources

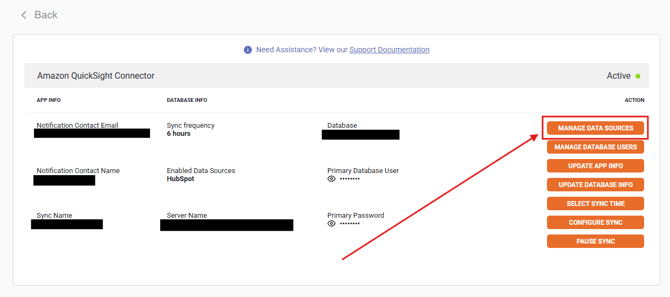

To manage your data sources, click the Data Sources button in the user panel interface.

For more details about what data sources are available, as well as how to add, remove, and alter existing data sources for your connector please visit the support guide linked below.





Google Data Studio Setup

When you open a new or existing Google Data Studio document or explorer and want to use a table from your Connector database,  you will need to add it in Data Studio as an individual data source.

To do that, please review the following process:

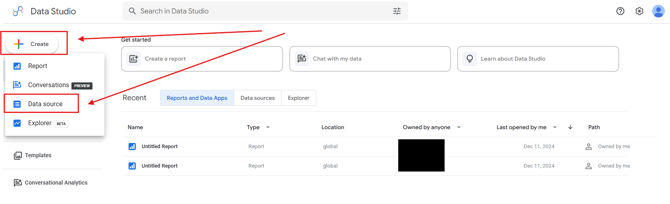

  • 1. Navigate to the main dashboard page of Data Studio and go to Create and then select Data Source.

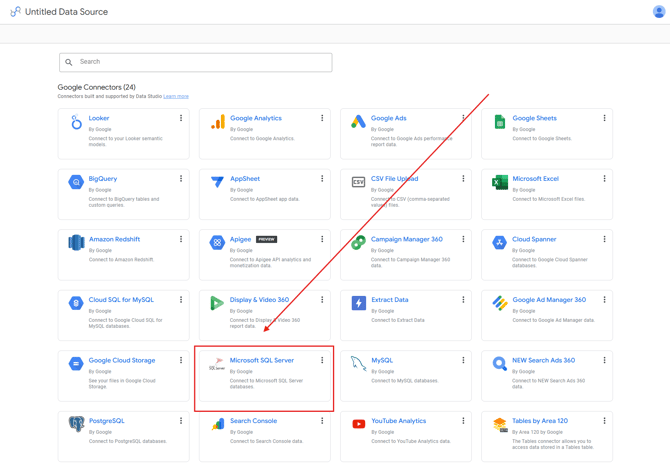

  • 2.  From there, you will select Microsoft SQL Server.

  • 3. On the next screen, you must enter your Server name into the Host Name field, the port number (1433), your Database Name, and your Username and Password. This is demonstrated in the image below. Then select authenticate and all of your data tables will appear ready to use.
    • Your Server name should be entered into the Host Name field without the http:// prefix. You must enter the Server information exactly as it is displayed in the User Activation email that you have received upon completion of sign-up for the app.
    • Some email providers automatically hyperlink the Server address. Do not copy the hyperlink. Simply copy paste your Server name and enter it in the Host Name field shown below.



You will have to repeat the above steps to add each table. This is a limitation in Google Data Studio. If you use the "Explore" function, you can add all the tables and join them before creating your reports. We recommend you do that if possible.



Please use the Entity Relationship Diagram (ERD) linked below to learn how to best connect the various data tables together:

You can learn how to do joins and blends in Data Studio via the link below.



Allow at least 24-48 hours from activation for the initial database to be built. Once it is built it will refresh at the rate determined by your plan.



How to uninstall the app

For instructions on how to uninstall the Datawarehouse.io app in your data source, please review the following documentation:

*Please note this does not cancel your subscription. To do that, please visit:



Beta API's

This app utilizes the following beta API's:

ChatflowThread and ChatflowMessage data tables contain Chatflows data and is powered by the beta API listed below.



More information about beta APIs can be found in this supporting documentation.



Opt-In Tables (HubSpot Only)

The following tables are available for opt-in as they tend to be larger, advanced data sets and can take up a significant amount of storage and API Calls. You can submit a support request with your database name at https://datawarehouse.io/opt-in-data-types/ or email us directly with your database name at help@datawarehouse.io to ask for these to be enabled. There is no additional cost to enable these tables.

  • ContactWebEvents
  • CustomEvent
  • ContactSubscriptionType
  • ChatflowThread
  • ChatflowMessage
  • TicketPropertiesHistory
  • DealPropertiesHistory
  • ContactPropetiesHistory
  • CompanyPropertiesHistory
  • EngagementsHistory
  • CampaignContactAssociations



Data Sync

Data syncing will be done at intervals determined by your plan.

Please allow at least 24-48 hours from activation for the initial database to be built. Once it is built, it will refresh at the rate determined by your plan.



Data Security

  • Only you will have "read only" access to your database. You can make changes in Data Studio, but they will not be reflected in your data source.
  • User authentication for each data source is done using OAuth 2.0 protocol as per the best practice in industry.
  • This application is GDPR Compliant
  • If you have trouble accessing the database due to your internal firewall restrictions please have your IT department open outbound TCP Port 1433
  • If there is information missing from a property it could be because that fields is improperly configured in its respective data source.
